Insulating Structural Glazing Sealant Neutral Curing Silicone Quick Dry Glass Adhesive
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | UNEX |
| Certification: | CE |
| Model Number: | 166 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1box |
|---|---|
| Packaging Details: | *168A+B:180L + 18L Set *168A+B:19L + 1.9L Set |
| Delivery Time: | 20-30 work days |
|
Detail Information |
|||
| Name: | Insulating Structural Glazing Sealant Neutral Curing Silicone Quick Dry Glass Adhesive | Surface Dry Time: | ≤1h |
|---|---|---|---|
| Thermal Weightles: | ≤ 3.0% | Usage: | Construction, Insulating Glass |
| Type: | Insulating Glass Sealant | Main Raw Material: | Silicone |
| High Light: | Insulating 1.8h Structural Glazing Sealant,1.7s Adhesive Structural Glazing Sealant,Neutral Curing Silicone Sealant |
||
Product Description

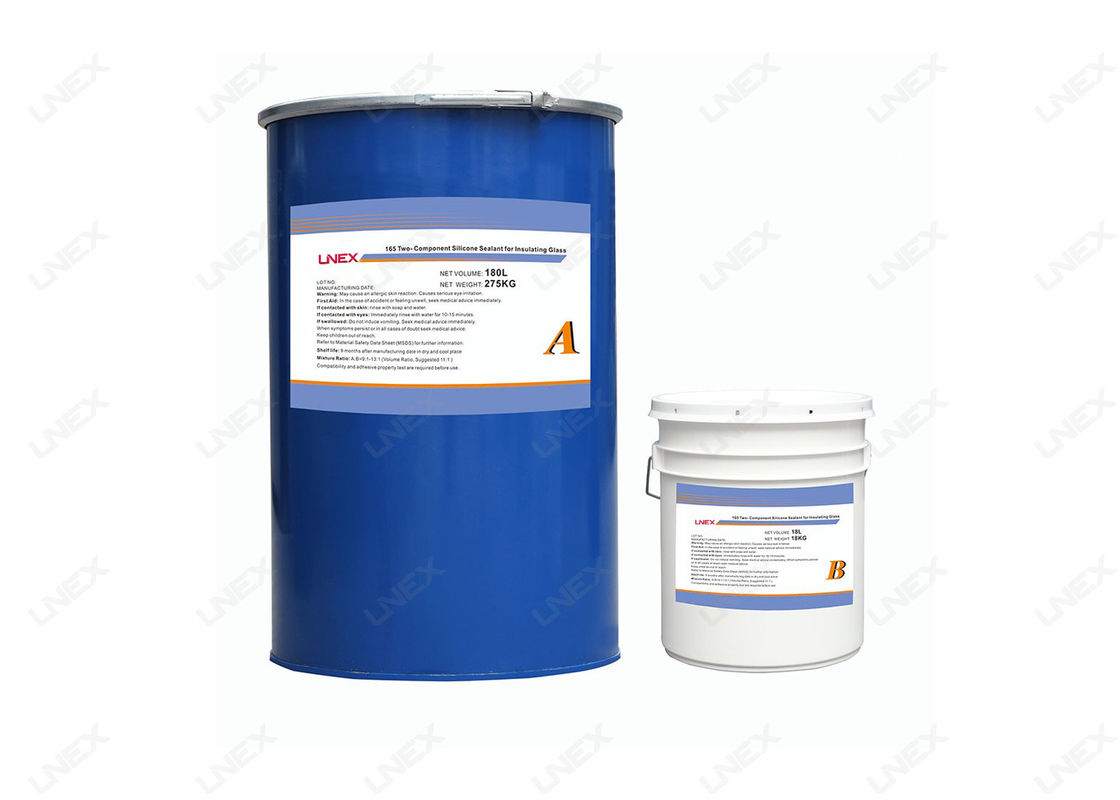

Insulating Structural Glazing Sealant Neutral Curing Silicone Quick Dry Glass Adhesive
Two-component, neutral curing silicone structural sealant. It is specially designed for structural glazing in Insulating Glass, and with the advantage of high strength, high modulus, etc.. It has excellent performance of adhesion, weather resistance, high and low-temperature resistance. It fully meets the requirements of the structural assembly of insulating glass.
TECHNICAL DATE SHEET:
| Test items | Standard Ordain | Measured value | ||
| Appearance | Even, exquisite paste, No bubble, no skinning, no gel | Even, exquisite paste,No bubble, no skinning, no gel | ||
| Applicable period, 20min, s | ≤10 | 1.7 | ||
| Hardness, Shore A | 30~60 | 39 | ||
| Tack free time,h | ≤ 3 | 1.8 | ||
| Tensile Modulus, MPa(10%) | ≥0.15 | 0.2 | ||
| Fixed adhesion | Fixed 25%, no destruction |
No destruction | ||
| Heat deterioration | Mass loss, % | ≤6.0 | 1.5 | |
| Crackle | No crackle | No crackle | ||
| Powdering | No powdering | No powdering | ||
| Sag degree | Horizontal,mm, | No deformation | No deformation | |
| Verticality,mm, | ≤3 | 0 | ||
| Tensile adhesion |
23℃ | Tensile strength,MPa | ≥0.60 | 1.06 |
| Damage area of bonding, % |
≤5 | 0 | ||
| 90℃ | Tensile strength, MPa |
≥0.45 | 0.83 | |
| Damage area of bonding, % |
≤5 | 0 | ||
| -30℃ | Tensile strength, MPa |
≥0.45 | 1.91 | |
| Damage area of bonding, % |
≤5 | 0 | ||
| After water immersion |
Tensile strength, MPa |
≥0.45 | 1.09 | |
| Damage area of bonding, % |
≤5 | 0 | ||
| After water & UV radiation |
Tensile strength, MPa |
≥0.45 | 0.92 | |
| Damage area of bonding, % |
≤5 | 0 | ||
Feature
• Neutral curing, no pollution or corrosion on metal, coated glass, and other building materials.
• The curing speed can be adjusted and has a fast curing rate, it is suitable for continuous construction of the automatic and manual production lines.
• Excellent performance within the broad temperature range. The cured sealant will not turn brittle, hardened, or cracked at -40º C. It will not turn soft or deteriorated and will keep good strength and flexibility at 120º C.
• Excellent resistance to weather, UV, ozone, and water.
• Compatibility with other neutral silicone sealants and other accessory facilities of structural glazing.
Application
• Intended for the structural glazing of the secondary sealing in insulating glass .
• Purposely designed for structural glazing of insulating glass.
