Glass 0.35mm Pdlc Smart Film For Switchable Smart Glass
Product Details:
| Place of Origin: | China |
| Brand Name: | UNEX |
| Model Number: | UN-L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | wooden box or carton |
| Delivery Time: | 7-25 work days according different quantity |
|
Detail Information |
|||
| Name: | Laminated Smart Film Outdoor Clear Switchable PDLC Privacy Glass | Color: | Clear |
|---|---|---|---|
| Thickness: | 0.35mm | Key Words: | Smart Film |
| Size: | Customized | Shape: | Curve, Flat |
| High Light: | 0.35mm pdlc smart film,switchable glass pdlc smart film,0.35mm switchable glass film |
||
Product Description

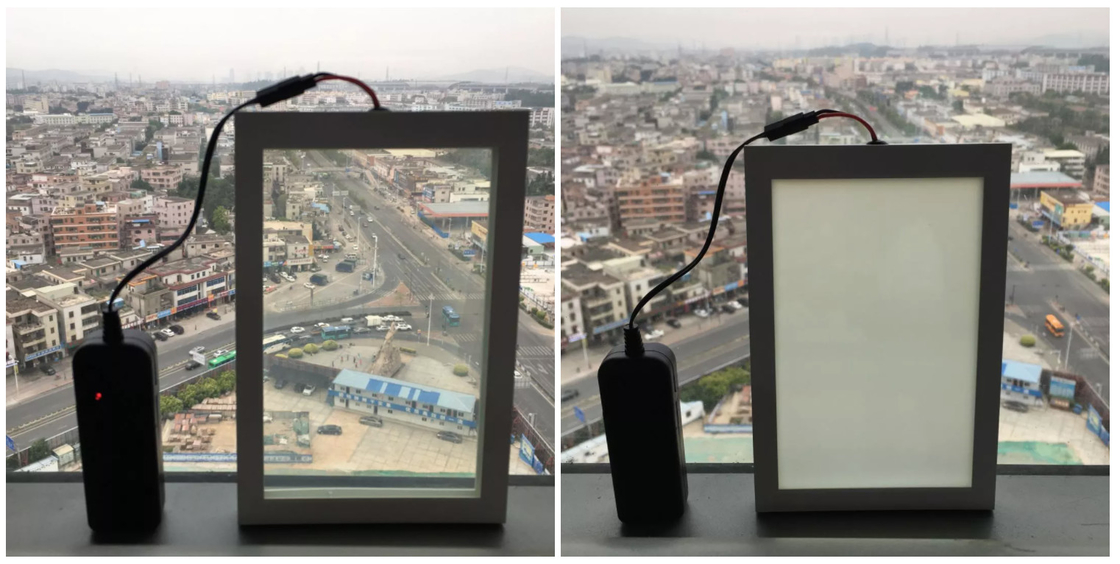

Laminated Smart Film Outdoor Clear Switchable PDLC Privacy Glass
Smart film is a new electronic controlled optical product, with a scientific name of polymer dispersed liquid crystal film(PDLC FILM).
In the switchable privacy film, small droplets of liquid crystal at micron meter level is dispersed in a polymer matrix, which is kept between
two films. In order to produce this PDLC film, special process is required.
Our laminated smart film have the below features:
Privacy protection
Projection function
Safety: switchable privacyglass has all the characteristic of safety glass, which can prevent the flying of debris after rupture of glass.
On the other hand, the strength of this glass is also excellent.
Switchable privacy glass can block the heat, more than 99 % of UV light and more than 98 % of IR light.
Soundproofing
◆ FILM PARAMETERS
| Test Parameter | State | Results | ||
| Optics | Transmittance (parallight) | Power on | About:75%(+/-3%) | |
| Power off | <1% | |||
| Haze | Power on | <7% | ||
| Power off | >90% | |||
| Visual angle | Power on | About: 150° | ||
| Screening of UV light | Power on | >99% | ||
| Power off | >99% | |||
| Screening of IR ligh | Power on | >30% | ||
| Power off | >90% | |||
| Electri-city | (Poweradapter)Vop | Power on | 70vAc | |
| Response time | Power on→Power off | 200 (ms) | ||
| Power off→Power on | 10 (ms) | |||
| Power | Power on | About:5 W/m2 | ||
| Size | Thickness | / | 0.4 mm | |
| Operating temperature | / | -10℃C to60°C | ||
| Storage temperature | / | -20℃Cto70°C | ||
| Life | Life time | Power on | More than 50000Hr | |
